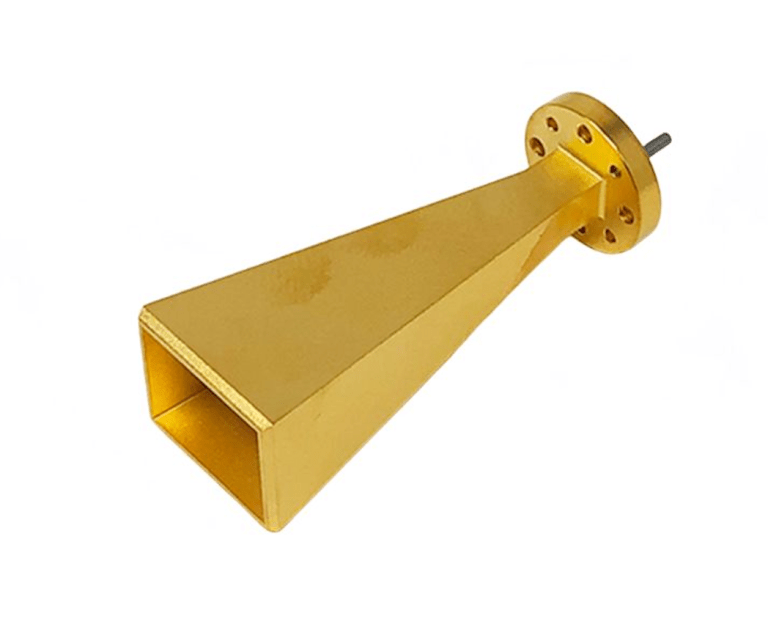

Horn Antenna
High-precision standard gain horn antennas covering WR28 to WR229. Optimized for satellite communications and calibration. Rugged aluminum construction with stable gain across the band.
Key Specifications
Model
—
VSWR
—
—
Antenna Type
—
—
Polarization
—
—
Frequency Range
—
—
Input Connector
—
—
Typ. Gain
—
—
Series
—
—
All Models
| Model | Antenna Type | Freq. Range (GHz) | Typ. Gain (dBi) | VSWR | Polarization | Input |
|---|---|---|---|---|---|---|
| GRDR_30140 | Dual-Ridged | 30–140 | 12 | 2:1 | Linear | 0.85 mm (F) |
| GRDR_20110 | Dual-Ridged | 20–110 | 11 | 2:1 | Linear | 1.0 mm (F) |
| GRDR_1067 | Dual-Ridged | 10–67 | 14 | 2:1 | Linear | 1.85 mm (F) |
| GRDR_1550 | Dual-Ridged | 15–50 | 12 | 2:1 | Linear | 2.4 mm (F) |
| GRDR_1840 | Dual-Ridged | 18–40 | 12 | 2:1 | Linear | 2.92 mm (F) |
| GRQR_1550 | Quad-Ridged | 15–50 | 11 | 2:1 | Linear | 2.4 mm (F) x2 |
| GRQR_1840 | Quad-Ridged | 18–40 | 11 | 2:1 | Linear | 2.92 mm (F) x2 |
| GRSGV | Standard Gain | 50–75 | 15/20 | 1.2:1 | Linear | WR-15 |
| GRSGW | Standard Gain | 75–110 | 20/25 | 1.2:1 | Linear | WR-10 |
| GRSGD | Standard Gain | 110–170 | 20/25 | 1.2:1 | Linear | WR-6 |
| GRSGF | Standard Gain | 90–140 | 20/25 | 1.2:1 | Linear | WR-8 |
Click any row to update key specifications above
